Welcome to CUPOLEX® AUSTRALIA
Dome Forming Concrete Floor Technology
© 2016 Cupolex     |     All rights reserved
  CUPOLEX  AUSTRALIA
BUILDING SUSTAINABLE FOUNDATIONS FOR THE FUTURE
ISO 9001 certified company
AWARDS
"Best environmental product” Civenex Sydney 2011"
Selected as the “Green” flooring system for the “American Home” at the 2010 International
Builders Show in Las Vegas
Made in Australia
Arrives on site packaged and ready to be installed
Quick and simple to install
Can be easily adapted to any soil classification
Minimizes concrete wastage
Made out of 100% non-toxic recyclable material which can contributes to GREEN or LEED certified building
Unlike other void systems the CUPOLEX® DOMES are strong and sturdy to work,  potentially reducing work site hazards.

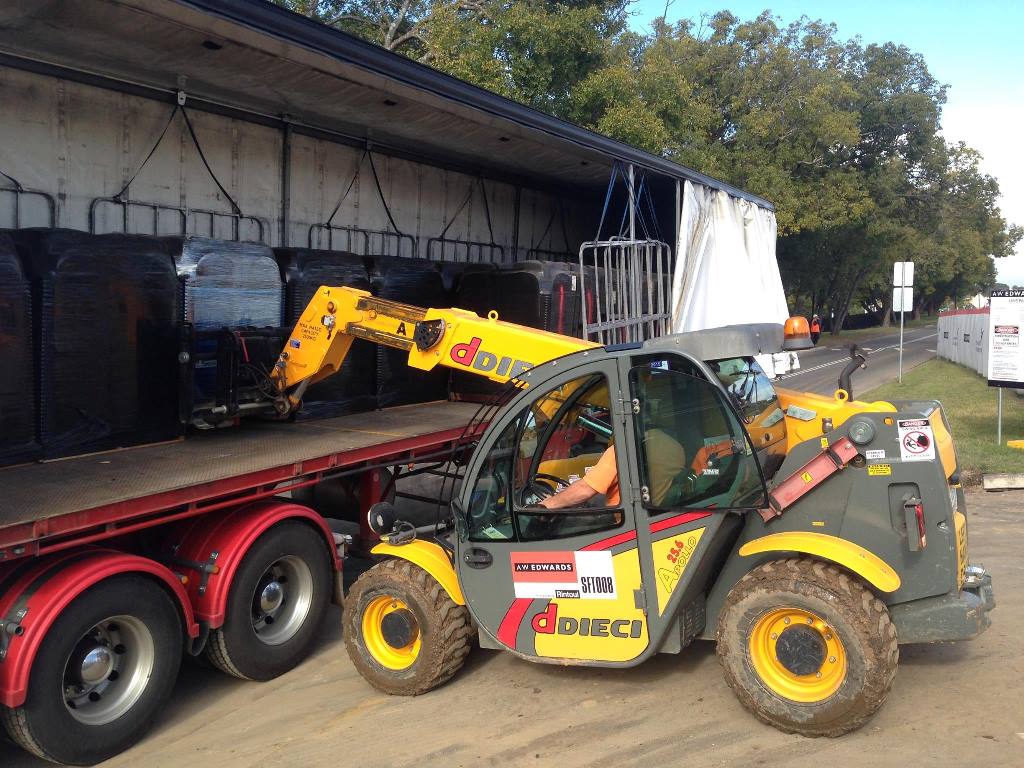

One pallet of CUPOLEX® replaces 3-4 trucks of gravel or fill. Minimizes site traffic
Polystyrene/Waffle Pods are white and have a significant glare factor. CUPOLEX® components are black and glare free
CUPOLEX® Building System is the Dome Forming Concrete Floor Technology with central reinforced cone
support, the most cost effective, advanced and sustainable solution for building designers, consultants and
developers. It is made from recycled non-toxic polypropylene.

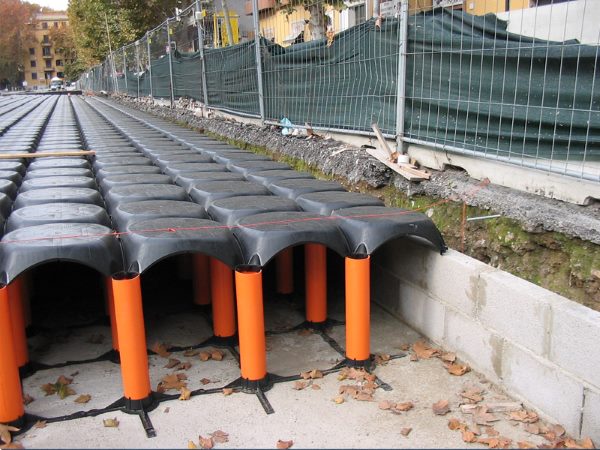

Each dome easily inter-connects to create a self supporting structure acting as permanent form work, as an
alternative to RibRaft polystyrene and or hard fill in your concrete slab.
Not only does CUPOLEX® provide an absolute barrier and reduces potential for rising damp with no capillary
action possible, but it also is cost effective.
The CUPOLEX® concrete slab system can also provide significant reductions in the volume of concrete,
reinforcing steel and labour required to put the system down.
CUPOLEX® having a air void under the foundation lends itself perfectly for the venting of these harmful
gases out of the building envelope and into the external atmosphere.
Radon gas is only an issue near uranium mining areas in Australia however methane gas emissions are
more common.The CUPOLEX® system allows Volatile Organic Compounds (VOC's), Radon Gas and
humidity or moisture to be passively vented away from the slab.
Developments built on former dump sites with high levels of methane or areas with high levels of thermal
activity are particularly suited to the use of CUPOLEX®

Go Green and save money. “CUPOLEX® ticks all the boxes”.
Cost effective greener and sustainable concrete flooring system
AUSTRALIA
  • CUPOLEX® domes are made of recycled polypropylene, they easily inter-connect to create a self-supporting structure acting as a strong form work
  • CUPOLEX® is available in various sizes, it can replace costly engineered fill on some sites and significantly reduce cost.
  • Quick and simple installation of CUPOLEX® can save you time and money. 2 men can put down 150-200m2 per hour
  • CUPOLEX® can provide significant reduction in the volume of concrete and reinforcing steel.
  • Patented dome shaped forms of CUPOLEX® introduce arches into concrete slabs and make it stronger and reduces slab curling and shrinkage cracks.
  • CUPOLEX® domes are stackable and compact. Traditional EPS systems are bulky, light and nasty to the environment.
  • Unlike CUPOLEX® domes, the EPS equivalents can be messy and produce waste.
  • CUPOLEX® provides an absolute barrier and reduces potential for rising damp and moisture which is associated with adverse health effects. Most suitable for projects like schools and retirement homes
  • Reduce Carbon Footprint. This load for 20 home sites will save around 7000kgs of CO2 being emitted from diesel fuel into the atmosphere compared to transporting EPS products
  • High performance and safety is the primary goal of CUPOLEX® systems. It allows men to work on top of the elements with various working loads.
